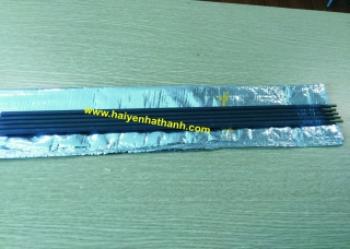

Cast iron welding rods

Cast iron welding rods

Trạng thái : Liên hệ

Giá : Liên hệ

STANDARDS AND STANDARDS:
- American Standard: AWS A5.15
- Japanese Standard: JIS: 3252

Xem thêm

Liên hệ đặt hàng
STANDARDS AND STANDARDS:
- American Standard: AWS A5.15
- Japanese Standard: JIS: 3252

FEATURES AND APPLICATIONS:
- G - 33 is a welding rod for cast iron, graphite coated, stable arc, smooth fire.
- The welding after welding is high hardness, difficult to cut, usually can only be sharpened when necessary.
- Suitable for welding details, cast iron like casting door, machine platform, engine stand, engine cover, housing ...

PACKING:
Net Weight (Kg)
Net Weight (Kg)
01
twelfth

CHEMICAL COMPONENTS OF WELDING KINDS (%):
Element
C
Mn
Si
P
S
Value
2.8 - 3.5
0.35 - 0.65
2.8 - 3.5
0.030 max
0.030 max

DIMENSIONAL WELDING AND ELECTRIC USE (AC & DC):
Diameter (mm)
Ø3.2
Ø4.0
Ø5.0
Length (mm)
350
400
400
Welding current (Ampere)
Sold by
90 - 120
160 - 180
160 - 200

MANUAL INSTRUCTION:
- Prepare all labor safety factors before welding. Welding power is stable.
- When the welding rod is moist, welding easily smoke, firing and unstable, welded pitting, need to dry 1200C - 1500C in 40 - 60 minutes before use.
- Remove oil, dust, dirt on the welding surface.
- Ensure welding gap, beveled edge of welding material in accordance with norm. In case of welding repair cracks, before welding to drill the cracks head to prevent further spreading cracks when welding.
- Heater heating 400 - 5000C.
- Select the welding current and welding speed so that the heat generated is as low as possible to ensure the least hot welding, minimizing the risk of cracking due to shrinkage.
